Customised Profiles

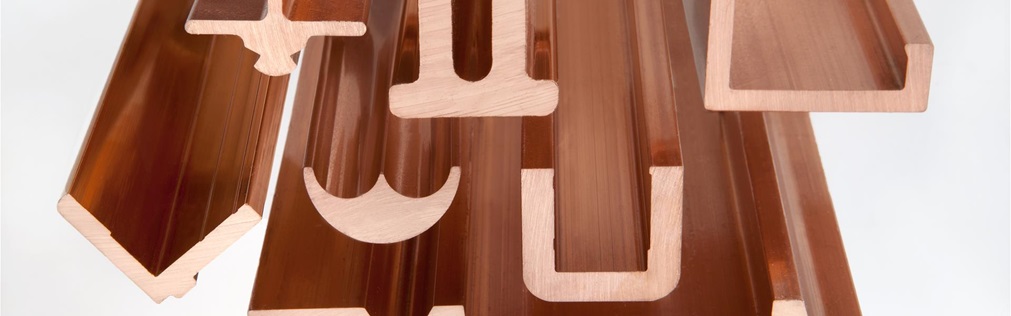

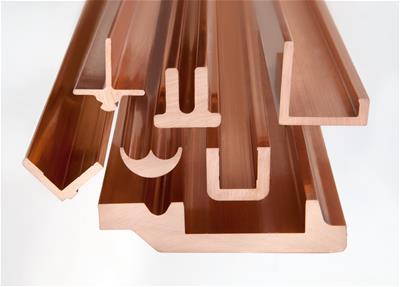

Customised profiles with tailor-made shapes and sizes
We see custom shapes as an opportunity for creative problem-solving and ingenuity, and believe that we have a genuine competitive strength in this area.
A sample, a drawing, or even a description of the desired shape gives our engineers enough of a starting point to develop the finished product.
Our design and tool manufacturing is based on a thorough understanding of process and process control.
Profile products are an economically viable option to ensure customer success. With the finished profile shape, the customer does not have to worry about the shape of the product itself, for example by machining. In many situations, a direct cut to length profile will make the product ready for assembly, and the taking care of the metal from the cut will remain with the supplier.
Luvata's excellent raw material, tool manufacturing and advanced manufacturing process makes it possible to supply very demanding shapes.
| Alloy | Composition % | EN - CEN/TS 13388:2008 | ASTM / USA |
| OF-OK | Cu + Ag min. 99,99% (*) | Cu-OF / CW008A | CDA C10200 |
| HK003 | Ag 0,03 - 0,05% | CuAg0,04 (OF) / CW017A | CDA C104 OFS |
| HK015 | Ag 0,085 - 0,12% (**) | CuAg0,10 (OF) / CW019A | CDA C107 OFS |
| HCP | Cu 99,95% | Cu-HCP / CW021A | CDA C10300 |
Other elements max %:
(*) O 0,0005, Bi 0,0005, Pb 0,005
(**) Bi 0,0005, Others total 0,0065
(***) Ag 0,015, Bi 0,0002, Pb 0,0005, rest 0,03
- Standard EN13605
- Cross-section 35mm2 - 7500mm2
- Metric weight 0,2- 70kg/m
- Accurate cut to length process
- Custom packaging
- Fast and reliable delivery times
Tempers available:
- Hard 90-115HV
- Half-Hard Min. 70HV
- Soft 35-65HV
